SD51-760

Description

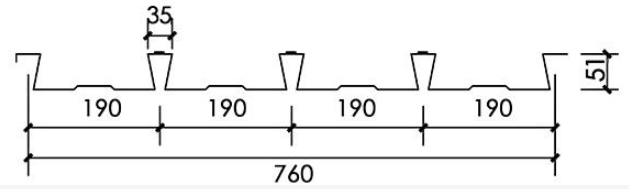

SD51-760 is a dovetail rib steel floor decking profile capable of maximizing the deck bond to concrete, delivering best in class load capacity and spanning widths of up to 3.0m unsupported.The standard profile contains 4 ribs and is 760mm wide with opposing male and female edges, creating an interlocking side lap when installed.

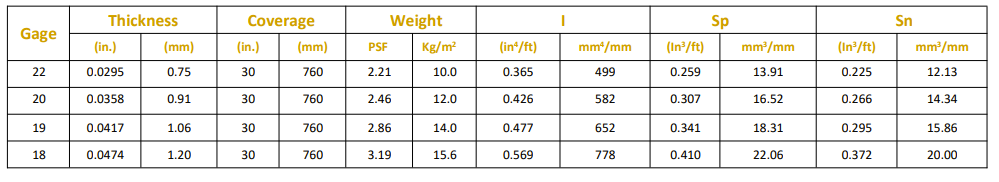

SD51-760 is the result of a number of design improvements by Solideck including the introduction of a higher grade steel for the metal decking . It has a smaller rib pitch and more coverage for faster construction.We can provide raw materials with thickness of 22, 20, 19, and 18 gauge, and galvanized sheet of 120g/m²~275g/m².
